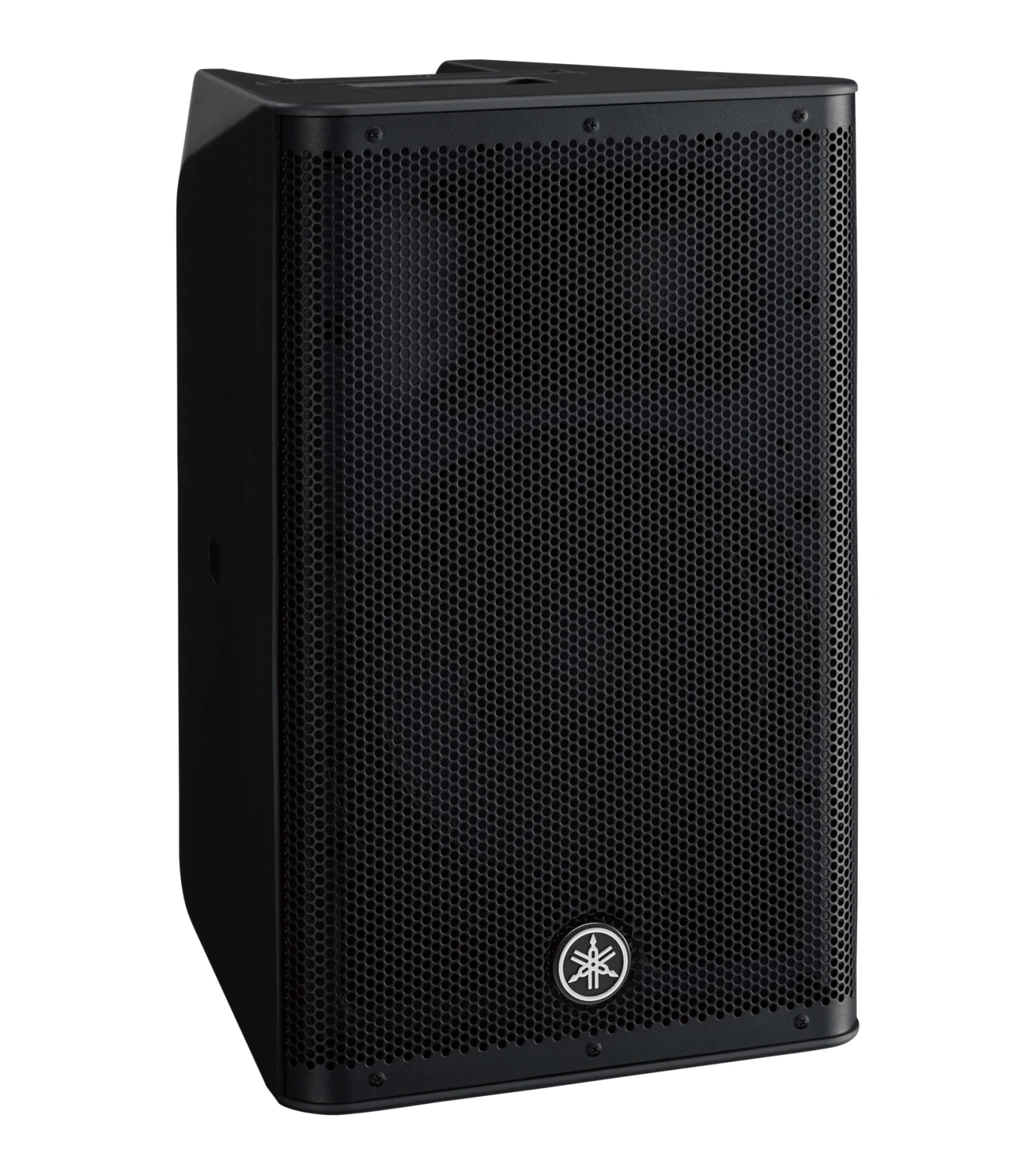

Yamaha DXR10-MKII 10” 2-Way 1100W Bi-Amp Powered Speaker

Portable, yet capable of producing an astonishing 132 dB SPL, the DXR10-MKII’s compact, functional design makes it ideal for a wide range of applications. Whether providing simple vocal/instrument amplification, very powerful floor monitoring or comprising a compact SR system – the DXR10mkII delivers without compromising sound quality and power.

Less Weight, More Power
Custom-Designed Transducers improved : All DXR-MKII Series transducers were meticulously selected and thoroughly customized to deliver ultimate performance. The high power output woofers deliver very low distortion and defined, deep bass, while the newly equipped larger, yet much lighter 1.75″ Neodymium precision HF compression drivers produce accurate midrange and high frequencies up to 20 kHz with less weight.

Wide Dispersion Constant Directivity Horn: The larger HF transducer is mounted to an all-new 90⁰ x 60⁰ constant directivity horn, designed with the goal of minimizing radiation pattern deterioration in oblique directions as more conventional horns are prone to doing. This can help to achieve a more ideal coverage area without irregularities. With the new wide dispersion constant directivity horn, sound expands in a more rectangular pattern providing 90⁰ horizontal x 60⁰ vertical coverage, with wide-frequency sound projected to the edges of the coverage area.

High-Efficiency 1100W Class-D Amplifiers
All-New Compact, High-Power DXR mkII Amp Modules: All DXR mkII Series loudspeakers are equipped with highly efficient Class-D amplifiers that were optimally designed to match the DXRmkII’s HF and LF transducers. These high-performance amplifiers deliver the highest sound output in their class with 1100W of power, producing an impressive SPL up to 134dB. They also provide very fast attack and superior transient response, which greatly contribute to these speakers’ incredible audio performance.

Intelligent Onboard 3-Channel Mixer
The DXR mkII Series features a flexible onboard mixer with a variety of input, making it ideal for simple vocal/ instrument amplification. With its flexible IN/OUT, the DXR mkII Series can comprise a full sound reinforcement system, or seamlessly integrate into a setup utilizing DZR or DXS Series speakers.

Versatile Mic and Line Level Input Capability: The DXR mkII onboard mixer can handle up to three simultaneous inputs. It accepts both Mic and Line level input, giving you the flexibility to connect to a variety of sources from microphones to line level instruments and portable audio devices. When in MIC position, a HPF is automatically activated to roll off unwanted low frequency.
