Yamaha DTX6K-X 5-Piece Electronic Kit With XP80 3-Zone Snare

Real sounds that drive the drummer
No compromise has been made in recording the sound of the instruments themselves – key to any drum sound along with the ambience of the place where they are played. The DTX-PRO has been fine-tuned to follow the drummer’s performance and allow for maximum expression.

Intuitive functionality that stirs creativity

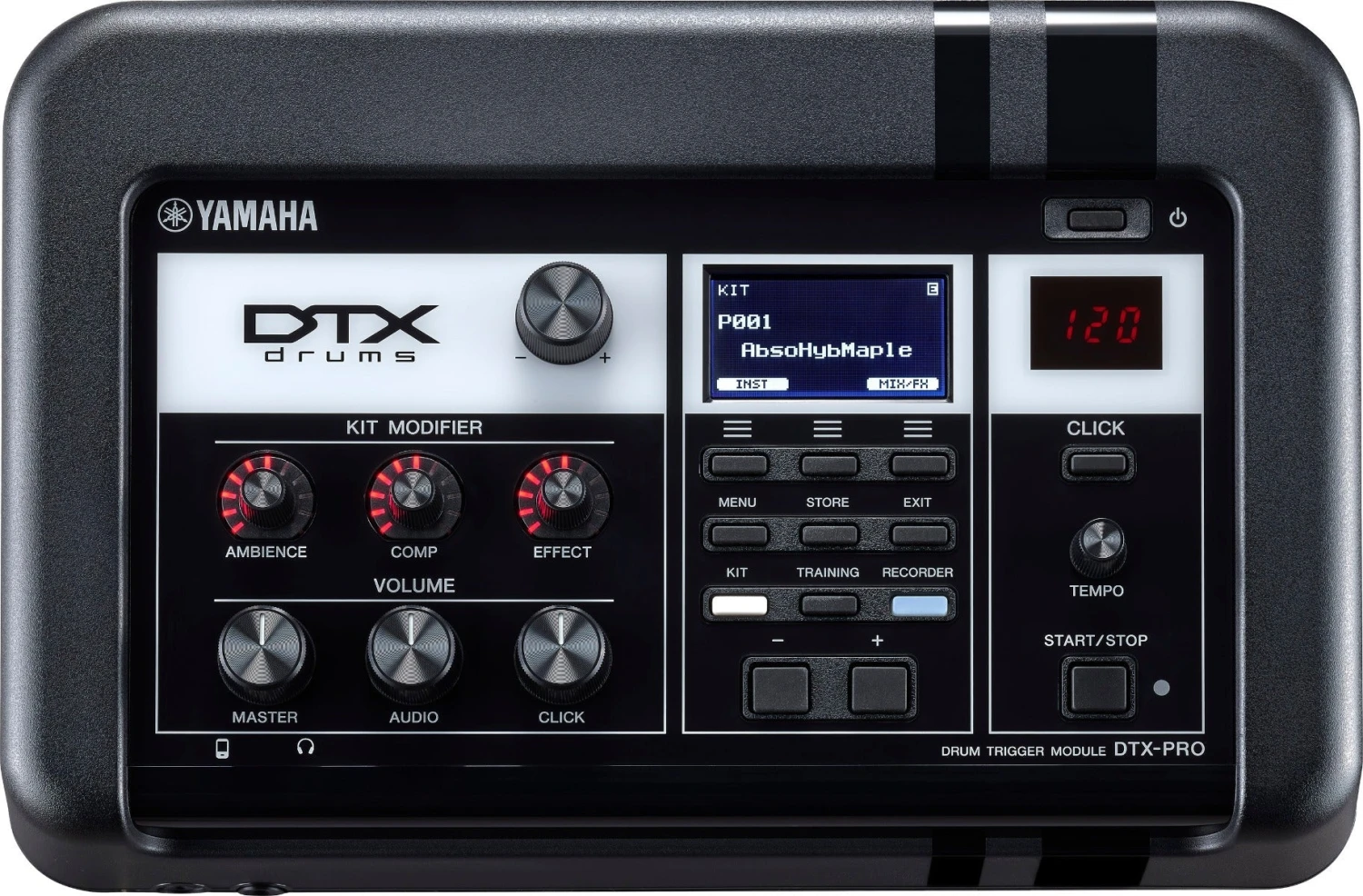

Kit Modifier condenses the sound creation know-how that Yamaha has accumulated over decades into three knobs: AMBIENCE, COMPRESSION, and EFFECT. A wide range of tonal possibilities are available, from the natural sound of acoustic drums through to live performance sounds carefully crafted by engineers.

• The AMBIENCE knob controls the reverberation of the drum sound; for an acoustic drum kit, up to 50% of the memory features the real ambience components of the recording studio, while 51-100% is high-quality digital reverb.• The COMP and EFFECT knobs utilize the “1 knob” control technology featured in Yamaha PA products.
• COMP controls the compression effect and brings them to the front, while EFFECT controls effects that have been optimized for preset kits.

High-performance sound engine that recreates sound creation
The high-performance sound engine equipping the DTX-PRO leverages the technologies Yamaha has acquired over decades of making musical instruments of all kinds.

With authentic acoustic and live drum sounds, the same high-end effects found in professional-grade synthesizers and audio equipment, and effect control functions that let you recreate the techniques of elite drummers with a single knob, the sound engine in the DTX-PRO even recreates the process of creating sound in recording studios and live performance scenarios.

As a complement to this, Yamaha drum pads feature pad sensing technologies that respond with precise accuracy to the actions of the player, delivering the ultimate in expressive capability that is reflected in the sound.

Features
• Create your own unique sounds with AMBIENCE, COMP and EFFECT kit modifier knobs
• TCS heads help to achieve a pleasing, natural feel and rebound that makes you want to keep playing
• 3-Zone pads for the snare and ride cymbals that can be choked and muted
• Ride cymbal equipped with hit point detection function

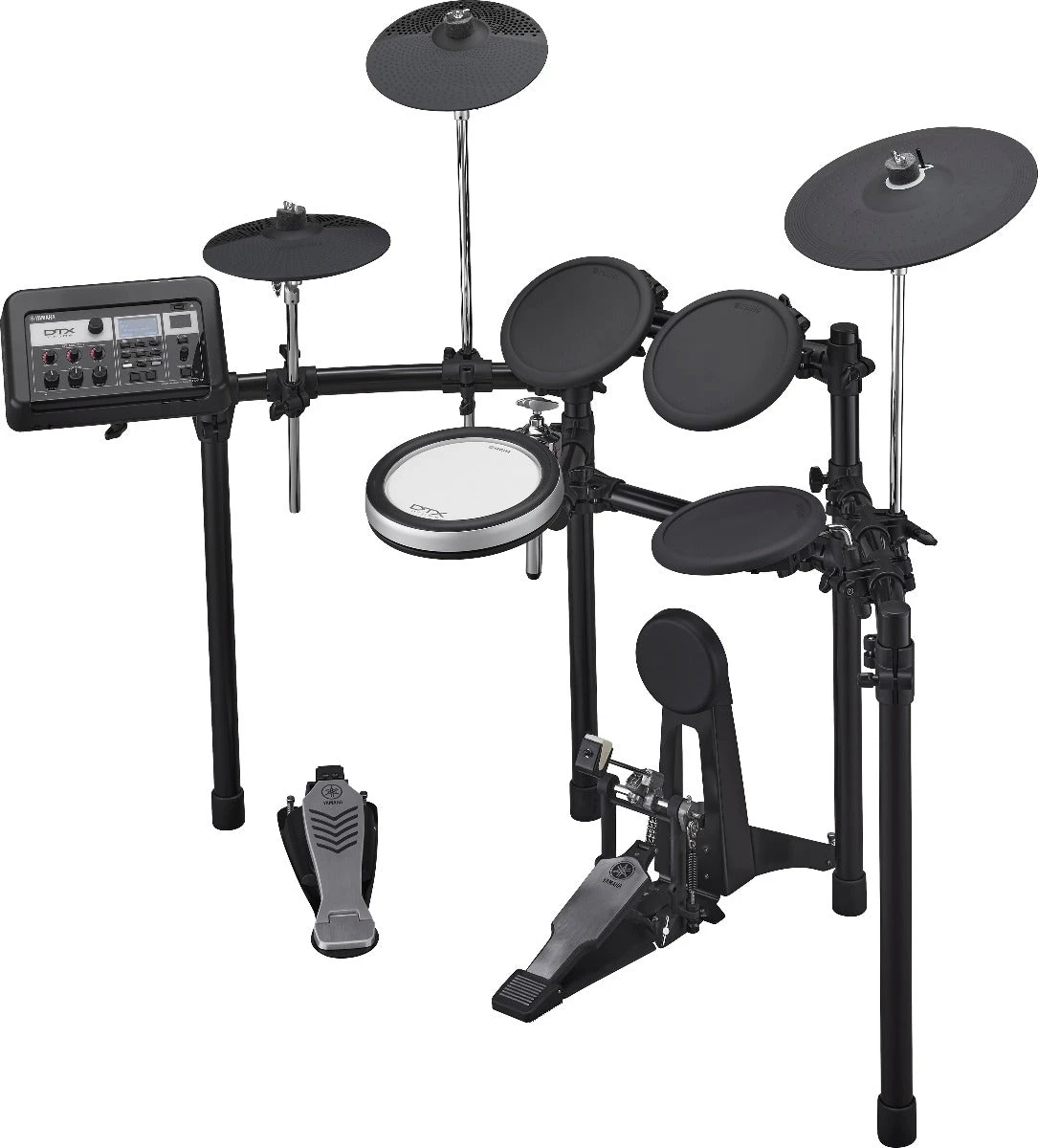

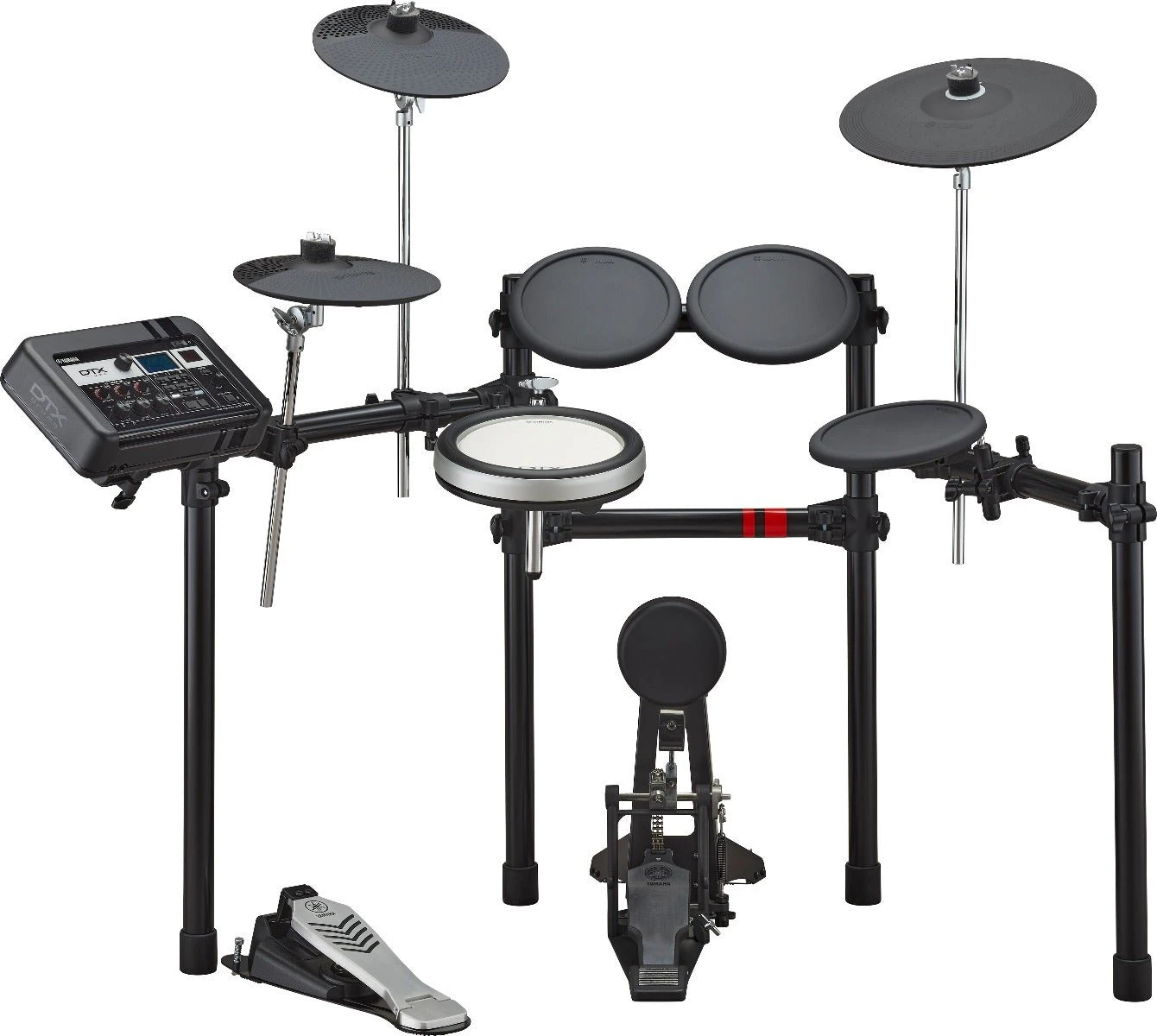

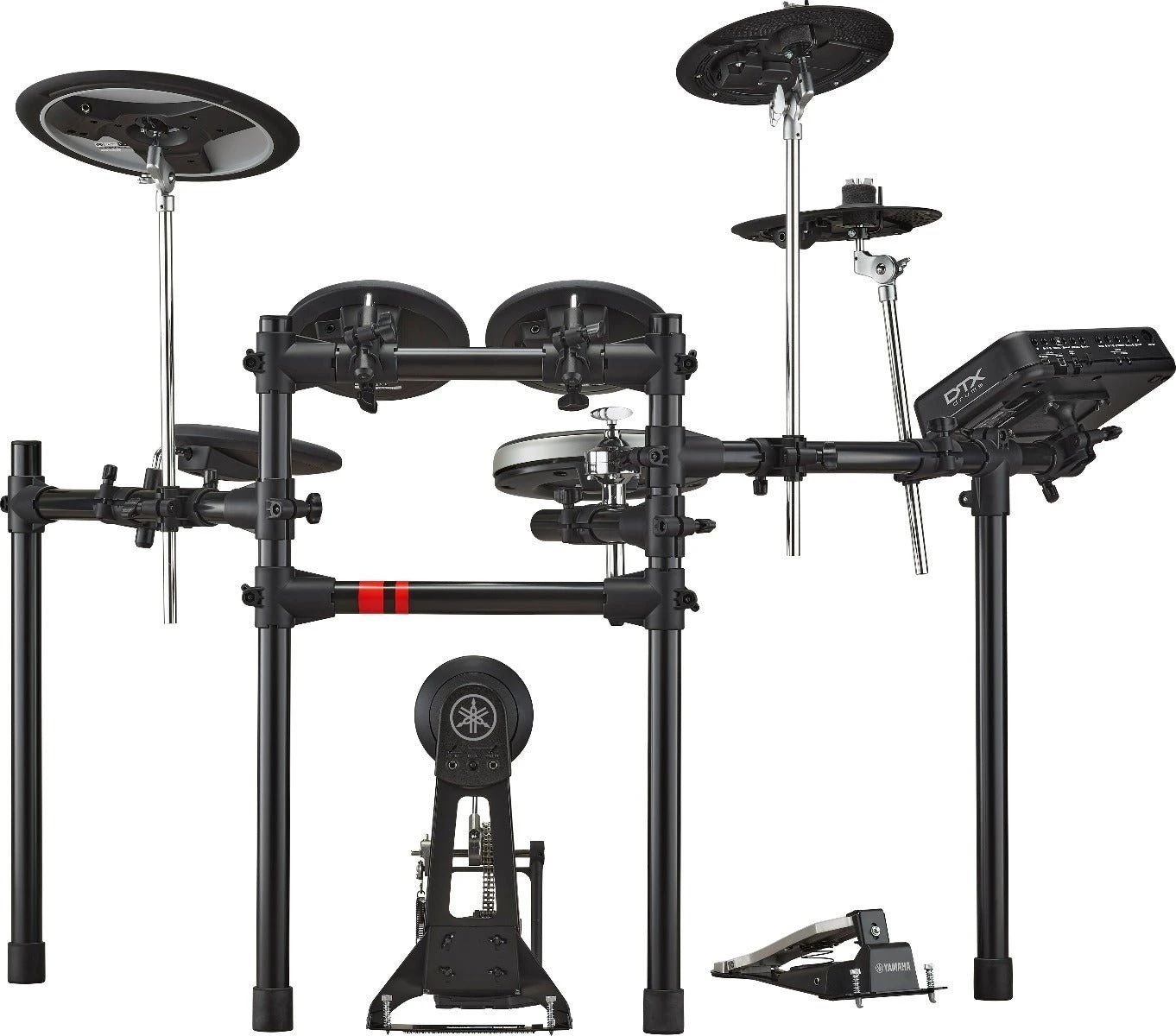

DTX6K-X Configuration
Snare: XP80 (8-inch) TCS head 3-zone pad
Tom 1, 2: TP70 (7-inch) Rubber head 1-zone pad
Floor Tom: TP70 (7-inch) Rubber head 1-zone pad
Bass Drum: KP65 (5-inch) Rubber pad, double foot pedal compatible
Hi-Hat: 10-inch pad and HH65 hi-hat controller
Crash Cymbal: 10-inch pad with “choke” ability
Ride Cymbal: PCY135 (13-inch) 3-zone pad
Rack System: DTX6K-X rack

DTX-Pro Specifications
Tone Generator
Maximum Polyphony: 256 notes
Effects
For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.
Drum Kit Preset: 40 Kits, User: 200 Kits
Voices: 712
Click
Click Sets: 30
Tempo: 30 to 300 BPM, Tap Tempo supported.
Time Signatures: 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets
Others: Individual click volume control, wav import, timer
Training
Types: 10
Song Presets: 37 songs, User: 1 song
Audio Files
Import Limit: 1,000 files
Maximum Loadable Sample Time: 760 seconds (44.1 kHz, 16 bit, mono), 380 seconds (44.1 kHz, 16 bit, stereo)
Sample Format: WAV
Recorder
Recording Time: Internal MemoryMaximum of 90 seconds
USB Flash Drive: Maximum of 90 minutes per file
Format: Record/playback: WAV (44.1 kHz, 16 bit, stereo)
Other
Connectors: DC IN (+12V)
Headphones: Headphones (standard stereo phone jack 1)
AUX IN: AUX IN (stereo mini jack 1)
Output: OUTPUT L/MONO, R (standard phone jack, one for each)
USB: USB TO DEVICE, USB TO HOST
MIDI: MIDI OUT
Trigger Input: Trigger inputs 1, 14: (Standard stereo phone, L: Trigger, R: Rim switch / Trigger), 2/3, 4/5, 6/7, 12/13: (Standard stereo phone, L: Trigger, R: Trigger), 8, 9, 10, 11: (Standard stereo phone, L: Trigger, R: Rim switch) *Maximum 14 of pads to be connected (when Y-cable is used)
Display: Full Dot LCD (12864 dot)
Physical
Dimensions: 30.3 x 19.6 x 6.6 cm / 11.9″ x 7.7″ x 2.6″
Weight: 1.5 kg / 3.3 lb

*Bass drum pedal not included
