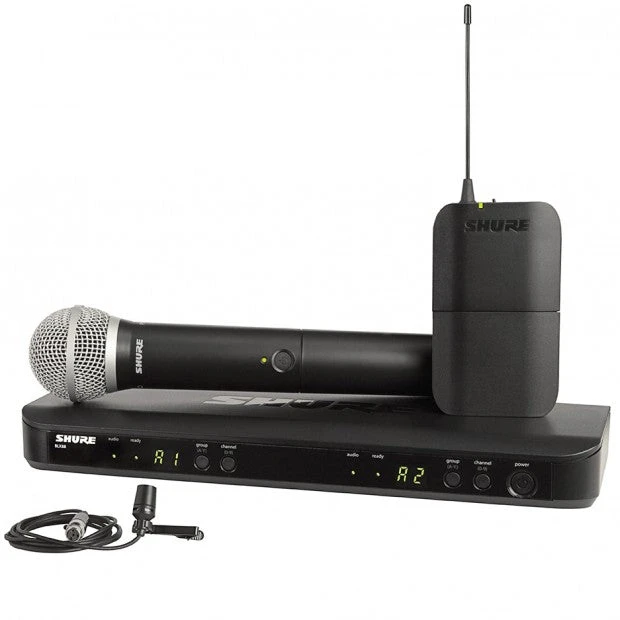

Shure Wireless Combo System With PG58 Handheld And CVL Lavalier

The Shure BLX1288/CVL-H9 Wireless Systems offers the performer wireless solutions to meet every need, with the sound that’s made Shure the go-to company when quality and reliability are absolutely critical.

Product Details:

The Shure BLX1288/CVL includes everything you need to take the stage with complete confidence. The BLX88 dual channel receiver, one BLX1 bodypack transmitter, one CVL Centraverse lavalier microphone, and one BLX2 handheld transmitter with the PG58 capsule are included. Of course, Shure’s legendary quality and durability are also included.

BLX88 Receiver:

• The BLX88 Dual-Channel Receiver is a dual-channel receiver set to Shure’s H9 frequency band and operates between 542 and 572 MHz. It has microprocessor-controlled internal antenna diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the frequency with the least amount of interference available.
• Its front-panel dual-coloir LED staus indicator displays green for normal levels and red when clipping for fast metering. It has two outputs in addition to two instument-level 1/4″ outputs. The BLX88 can be used with up to 11 other compatible systems simutaneously.
• Specifications:
• • Operating frequency: H9; 512.125-541.800 MHz
• • Output impedance: XLR connector: 200 ohms; 1/4″ connector: 50 ohms
• • RF sensitivity: -105 dBm (for 12 dB SINAD, typical)
• • Image rejection: >50 dB (typical)
• • Dimensions: 15.28″ x 4.57″ x 1.57″ (388 x 116 x 40 mm)
• • Weight: 15.1 oz. (429 g)

BLX1 Bodypack Transmitter :

• The BLX1 Bodypack Transmitter is designed for use with Shure’s BLX wireless systems. It is set to the H9 frequency band and operates between 542 and 572 MHz. It has a TQG input and can be used with Shure lavalier, headset, earset and instrument microphones. With the optional WA302 adapter cable, the BLX1 can be used as a transmitter for guitar. The usit has a top panel mounted on/off switch as well as volume control for quick access while speaking or performing. The BLX1 is powered by the two included AA bateries for up to 14 hours.
• The durable BLX1 features a lightweight, ergonomic design and adjustable gain control.
• Features: Quick and easy receiver frequency matching, TQG connection (for use with Shure lavalier, headset, earset and instrument microphones and guitar cables), and easily accessible On / Off switch.
• Specifications:
• • Operating frequency: H9; 512.125 – 541.800 MHz
• • RF output: 10 mW (typical)
• • Batteries: 2 AA alkaline per bodypack (4 included)
• • Battery life: up to 14 hours (depending on usage)
• • Dimensions: 4.33″ x 2.52″ x 0.83″ (110 x 64 x 21 mm)
• • Weight: 2.6 oz. (less batteries)

BLX2 Transmitter and PG58:

• BLX2 Handheld Transmitter with PG58 Microphone is set to Shure’s H9 frequency band between 542 to 572 MHz and provides a 300′ line of sight operating range. It is powered by two AA batteries for up to 14 hours. It is compatible with Shure BLX wireless systems set to the same frequency band. A padded zipper case and microphone clip are included.
• Compatible with Shure microphones trusted by musicians for decades, the BLX2 transmits wireless audio with professional clarity and reliability. Up to 14 hours of battery life.
• A rugged microphone tuned to accentuate the clarity of lead and back-up vocals. Its cardioid polar pattern picks up the most sound from in front of the microphone and some sound from the sides and is less susceptible to feedback in high volume settings.

BLX2 Transmitter Specifications:

• • Operating frequency: H10; 512.125 – 541.800 MHz
• • Gain adjustment range: 10 dB
• • RF output: 10 mW (typical)
• • Batteries: 2 AA (alkaline, included)
• • Battery life: up to 14 hours (depending on usage)
• • Dimensions: 8.875″ x 2.125″ (224 x 53 mm)
• • Weight: 7.7 oz. (218 g, less batteries)
• PG58 Specifications:
• • Element type: dynamic
• • Polar pattern: cardioid
• • Frequency response: 60 – 15,000 Hz
• • Sensitivity: -53 dBV/Pa (2.2 mV, @1 kHz, 1 Pascal =94 dB SPL)
• CVL Lavalier Specifications:
• The CVL Centraverse Lavalier Condenser Microphone is a miniature lavalier condenser mic that is optomized for speech and vocal performance. A tie clip is included.
• Clip-on lavalier condenser microphone in a discreet, miniature form factor ideal for professional presentations.
• Specifications:
• • Element type: condenser, electret bias
• • Polar pattern: cardioid
• • Frequency response: 50 – 20,000 Hz
• • Output level: -43.5 dBV/Pa
• • SN ratio: 72 dB (@1 kHz)
• • Weight: 0.88 oz. (25 g)

Shure’s new BLX Series wireless systems put the power in your hands. With robust features, simplicity of operation, rugged tour-ready construction, and Shure’s legendary sound quality, BLX systems make it easy for anyone to own the gear that helps you own the stage.
