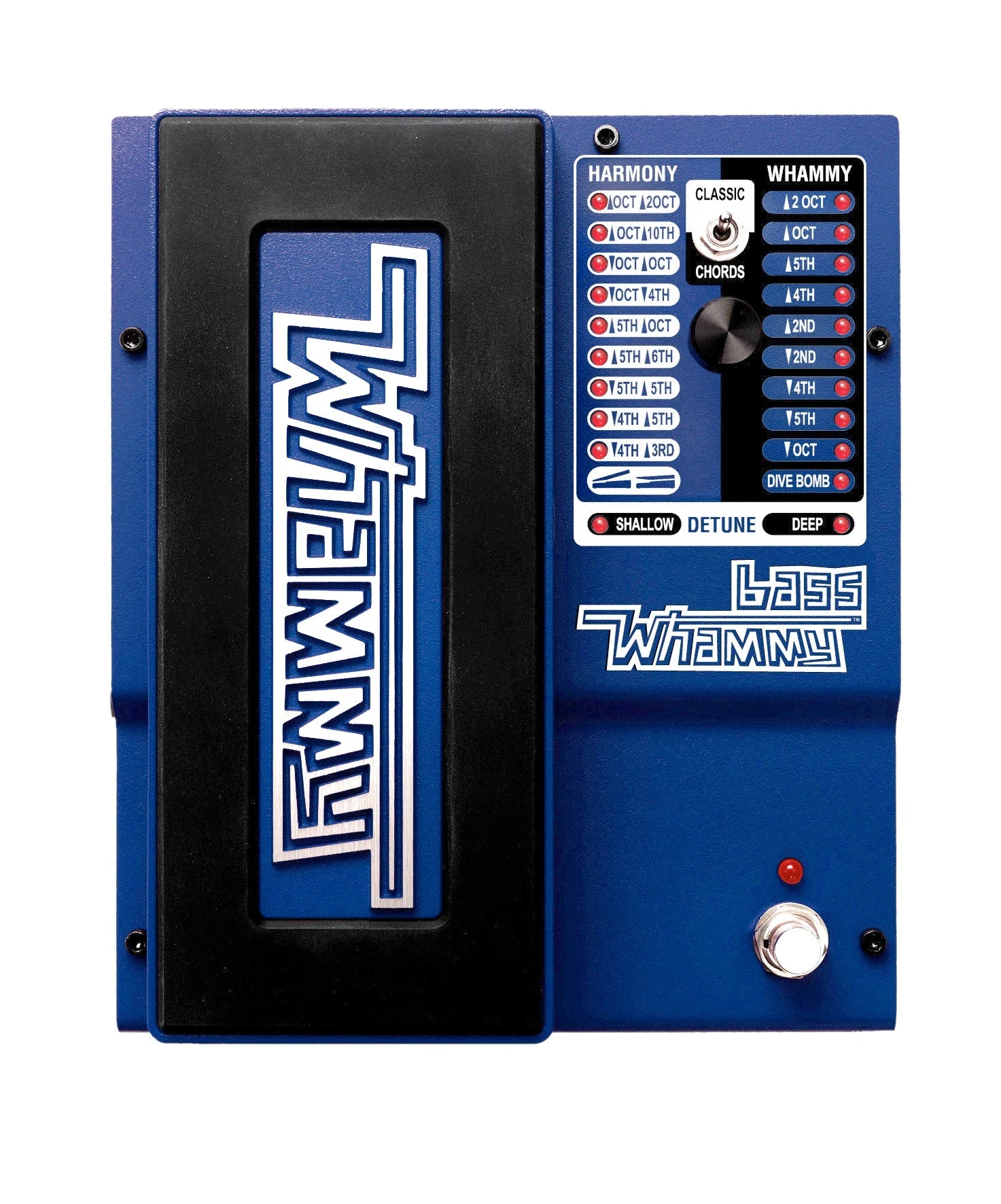

Digitech Bass Whammy Pitch-Shift Pedal For Bass Guitar

The next generation Bass Whammy uses the most advanced pitch detection and polyphonic note tracking technology to create the world’s best pitch shifting effect pedal optimized for bass. The Bass Whammy maintains the classic settings from the original with many modern upgrades. With two different tracking modes, Classic and Chord, the Bass Whammy gives players the ability to recreate the shift glitch effects from the original or get the smooth pitch shift effect. Chord mode uses advanced polyphonic tracking algorithms for a more exact and smooth pitch shift effect while Classic maintains the tracking artifacts of the original Whammy. The Bass Whammy is true bypass, MIDI controllable, and uses a 9V DC power supply to easily integrate into your existing pedalboard.

• General Specifications
• Sample Rate44.1 kHz
• Frequency Response20Hz–20kHz
• Signal to Noise Ratio> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
• THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
• A/D Conversion24 bit
• D/A Conversion24 bit
• Power Consumption2.4 Watts (< 265 mA @ 9 VDC)
• Power Requirements9 VDC External Adapter
• Dimensions
• Width6.5″
• Depth7.75″
• Height2.5″
• Audio Output
• Output Type1/4” Unbalanced TS
• Max Output Level+10 dBu
• Output Impedance1 kO
• Audio Input
• Instrument Input Type1/4” Unbalanced TS
• Max Input Level+5 dBu
• Input Impedance1 MO
• MIDI Input5-Pin Din
